LED Tube High Brightness 4ft 1800lm 18W T8 LED Tube

FOB Reference Price:Get Latest Price
$0.80 - $1.20 / Piece | 10000 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Warranty(Years):
2
Input Voltage(V):
85-265
Lamp Power(W):
18
Lamp Luminous Efficiency(lm/w):
95
CRI (Ra>):
80
Working Temperature(℃):
-20 - +40
Working Lifetime(Hour):
50000
Lamp Body Material:
PC
IP Rating:
IP
Certification:
ce, RoHS
Place of Origin:
Hubei, China
Brand Name:
OEM
Model Number:
T8
Light Source:
LED
CRI:
80
PC Housing:
Transparent / Milk White / Stripe
Beam Angle:
>120°
Luminous Efficiency:
100~110LM/W
Power Efficiency:
>85%
Power Factor:
>95
Input Voltage:
AC85~265V
LED Color:
Warm white, Pure white, Cool white
Working Temperature:
-20°C ~ +40°C
Item Type:
Tube Lights
LED Light Source:
smd2835
Lamp Luminous Flux(lm):
1750
Color Temperature(CCT):
warm white /pure white/ cool white
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed by paper carton
Port
Shenzhen, Huangpu, Shanghai
Lead Time :
30-40 days according to the order quantity

                                                                                                          LED Tube High Brightness 4ft 1200mm 18W T8 LED Tube

Product Description

 Images of led tubes







Parameters of LED tubes



Item No.

600mm

900mm

1200mm

1500mm

Power Consumption

9w

13w

18w

28w

Input Voltage

AC100-240V

AC100-240V

AC100-240V

AC100-240V

Dimension

600x26mm

900x26mm

1200x26mm

1500x26mm

Light Source

SMD2835

SMD2835

SMD2835

SMD2835

Luminous Flux

850lm±5%

1250lm±5%

1750lm±5%

2500lm±5%

Beam Angle

120

120

120

120

Power Factor

> 0.95

> 0.95

> 0.95

> 0.95

Lumen Efficiency

95lm/w

95lm/w

95lm/w

95lm/w

LED Quanitity(pcs)

60

96

120

144

CRI

80

80

80

80

Color Temperature

 2700-7000k

 2700-7000k

 2700-7000k

 2700-7000k

Power Factor

 >0.95

 >0.95

 >0.95

 >0.95

Life Span

 50000h

 50000h

 50000h

 50000h

WorkingTemperature

-20~40°C

-20~40°C

-20~40°C

-20~40°C

Material

Aluminum +PC

Aluminum +PC

Aluminum +PC

Aluminum +PC

Color Rendering

>80

>80

>80

>80



Features:

1. LED  with steady and reliable quality

2. Got CE, RoHS certificate.

3. High lumen SMD 2835 of 24~26 lm/pc to save cost and improve the lumens.

4. Isolated or nonisolated power supply

5. Single end input or double end input

6. 3 years warranty, 50,000 hours life span

7. 180° rotatable end cap or fixed end cap

8.   48 hours aging before delivery, to keep stable quality.







Advantage:



1. Own packaged SMD, designed driver, to control the quality and cost
2. Speical designed PCB, even one LEDs broken, others all can work



3. High lumen SMD 2835 makes the illumination high and the cost more competitive.



4. Good heat dissipation is ensure by high quality 6063 Al and unique design on the construction.

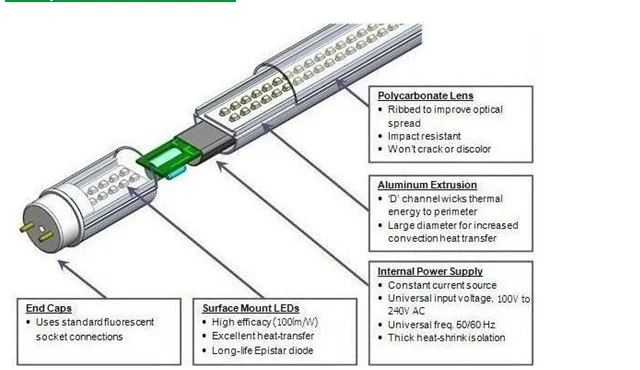

Details of LED TUBE

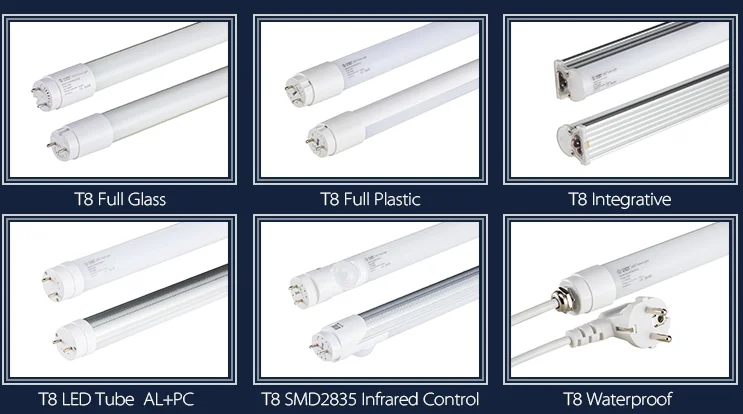

Different types of led tubes

Color temperature show
Installation of LED TUBE

Packaging & Shipping





Company Information







FAQ

 Q1: What is your warranty?

A1:  For the tube light, we have 3 years warranty.

Q2:  What is colour temperature?

A2: Our LED Lighting offer ceilling lights in warm, natural, pure and cool white with colour temperatures measured in  Kelvin (K). The lower the colour temperature is,the warmer the light given by the LED:

  • Warm white = 2700K-3200K
  • Natural white = 4000K-4500K
  • Pure white = 5000K-5500K
  • Cool white = 6000K-6500K

Q3:What is CRI?

A3: CRI is a figure which feedback the real objects colors. Higher CRI with higher cost. For LED tubes, the CRI is higher than 80. For the outdoor light, the CRI higher than 70 is OK at most of applications.

Q4: What is the AC Voltage tolerance for our LED tubes?

A4: Their AC voltage tolerance is +/- 10%.

Q5: Is there cheap shipping cost to import to our country?

A5: For small order, express will be best. And for bulk order, sea ship way is best but take much time.For urgent orders, we suggest via air to airport plus our ship partner send to your door.

Q6: Could you offer OEM tube light?

A6: Yes, we offer OEM tube light, the OEM tube light could offer your laber and your color box.
